The Equilator Set "Black Beauty" contains everything you need for inhalation and the care of the inhaler.
The Equilator is a sophisticated inhalation device for horses, specifically designed to support the natural self-cleaning function and promote well-being when the horse's lungs are exposed to dust or allergens. Made from sustainable bioplastics, it promotes respiratory health and well-being for your horse.
Scope of delivery

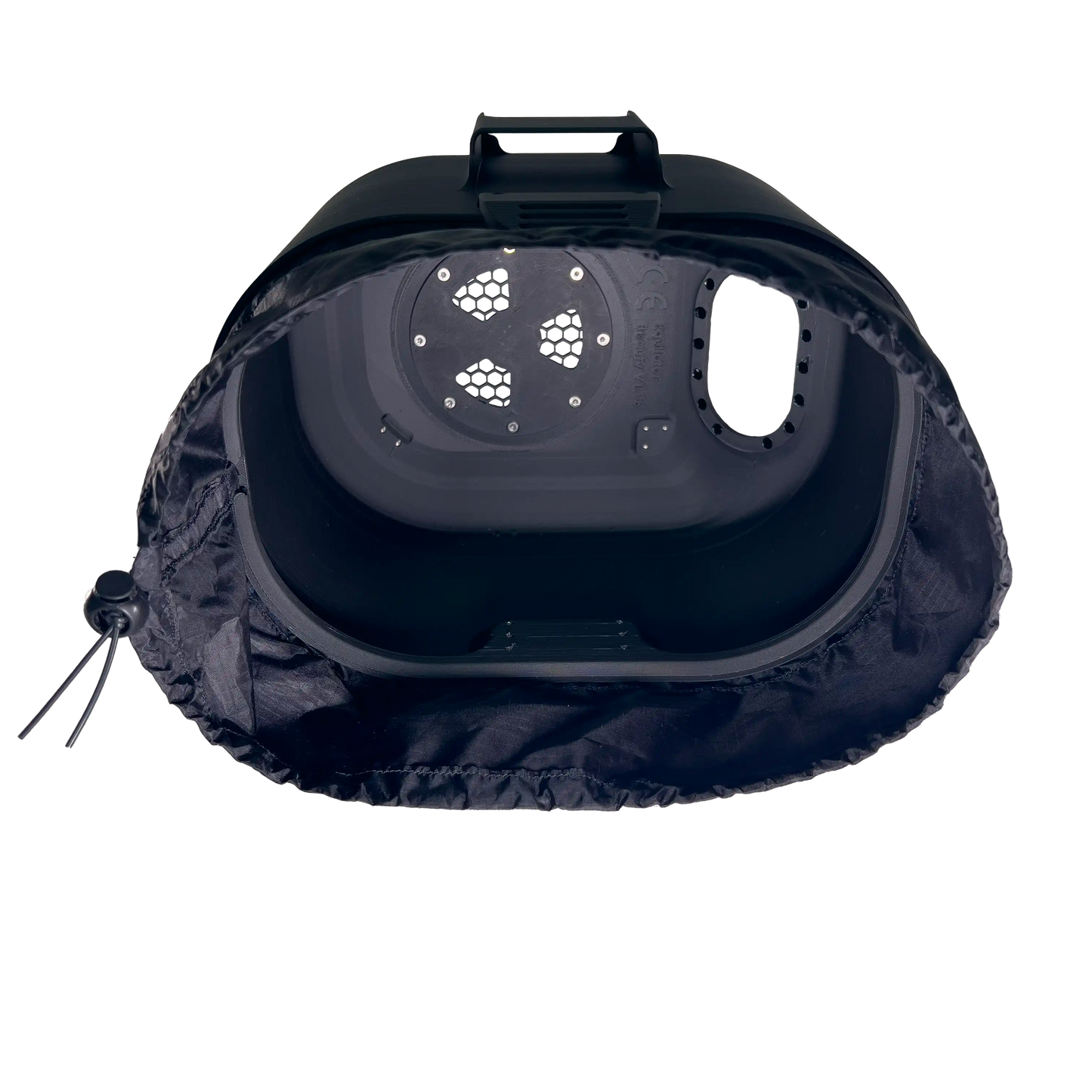

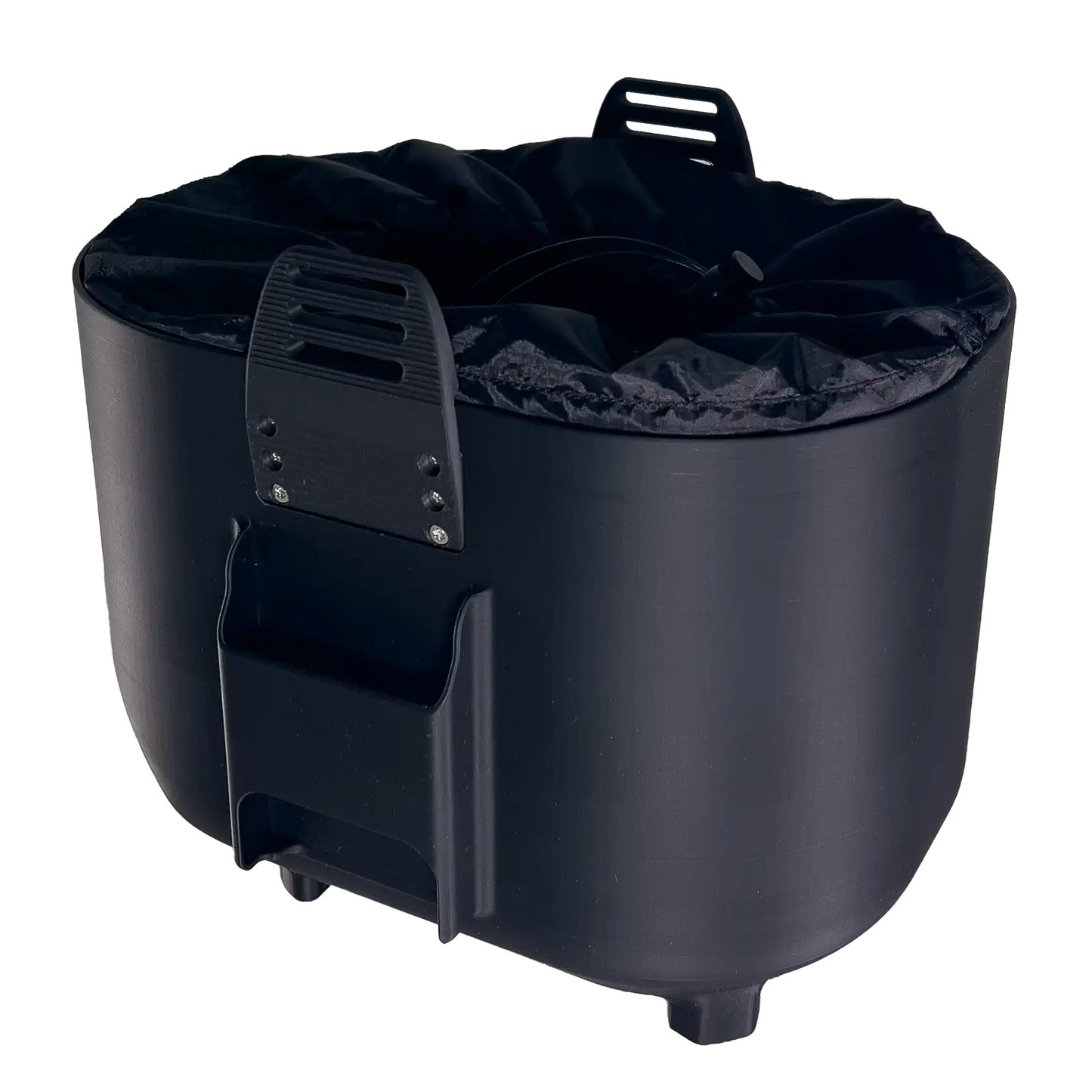

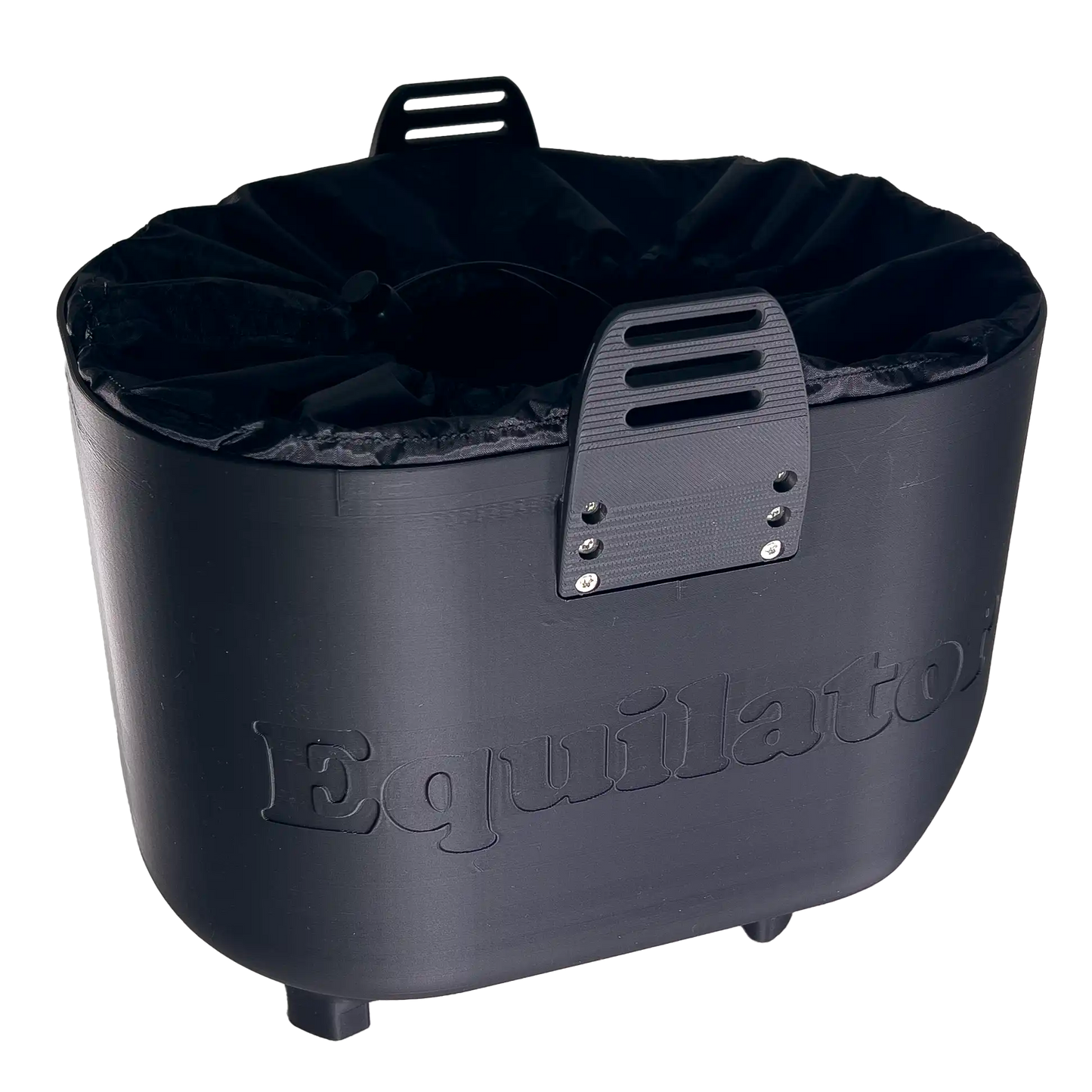

1 x Equilator Inhaler - The main device for effective inhalation for your horse.
2x Nebulizer attachment - The attachment for nebulizing the inhalation solution.
1 x USB cable - For connecting the nebulizer attachment to the power bank.
1 x power bank
1 x Frosch Hygiene Cleaner 300 ml - For cleaning the mask body
1 x ebelin disposable washcloths sensitive, 50 pcs. - For cleaning the mask body and the nebulizer
1x Distilled water 250 ml - For cleaning the membrane nebulizer

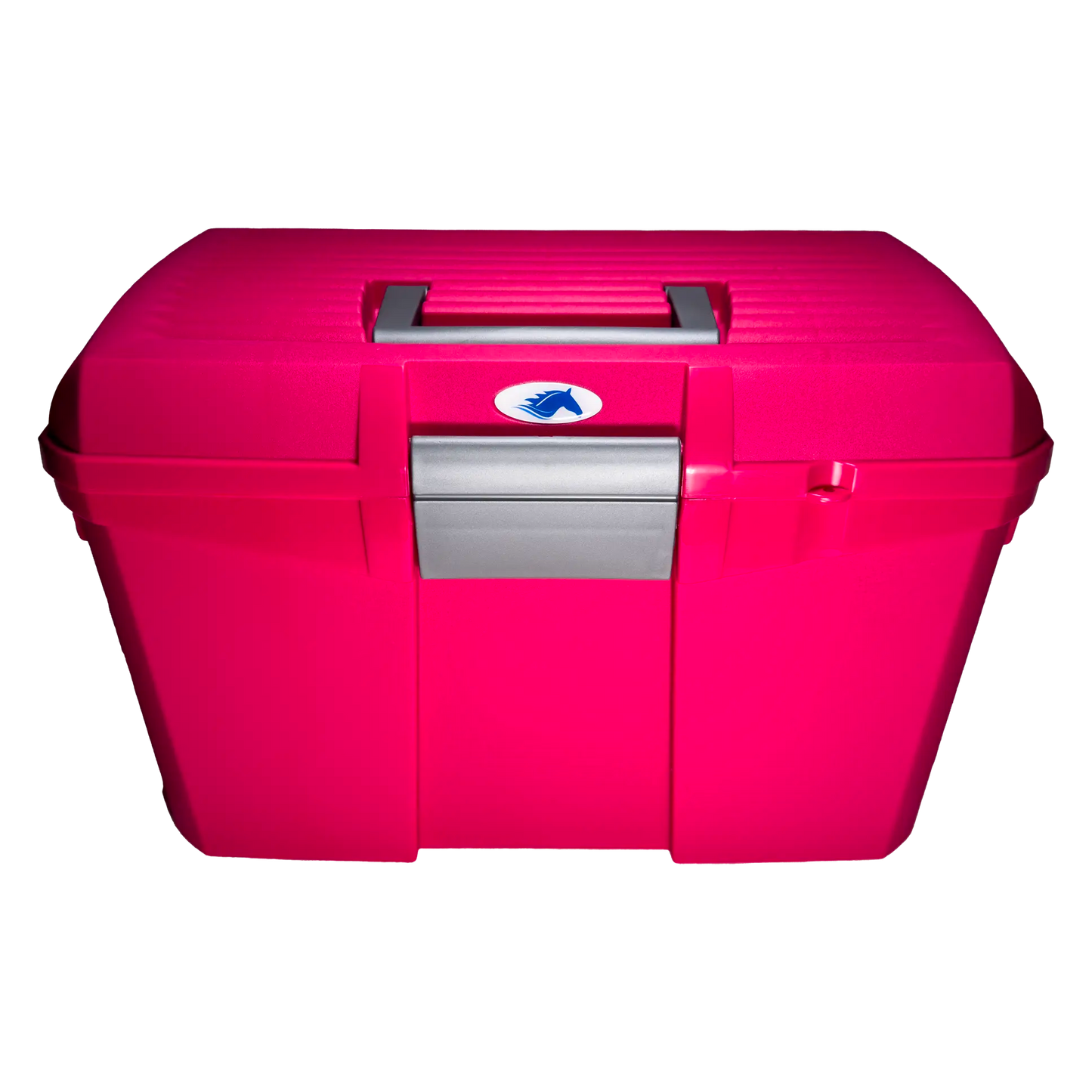

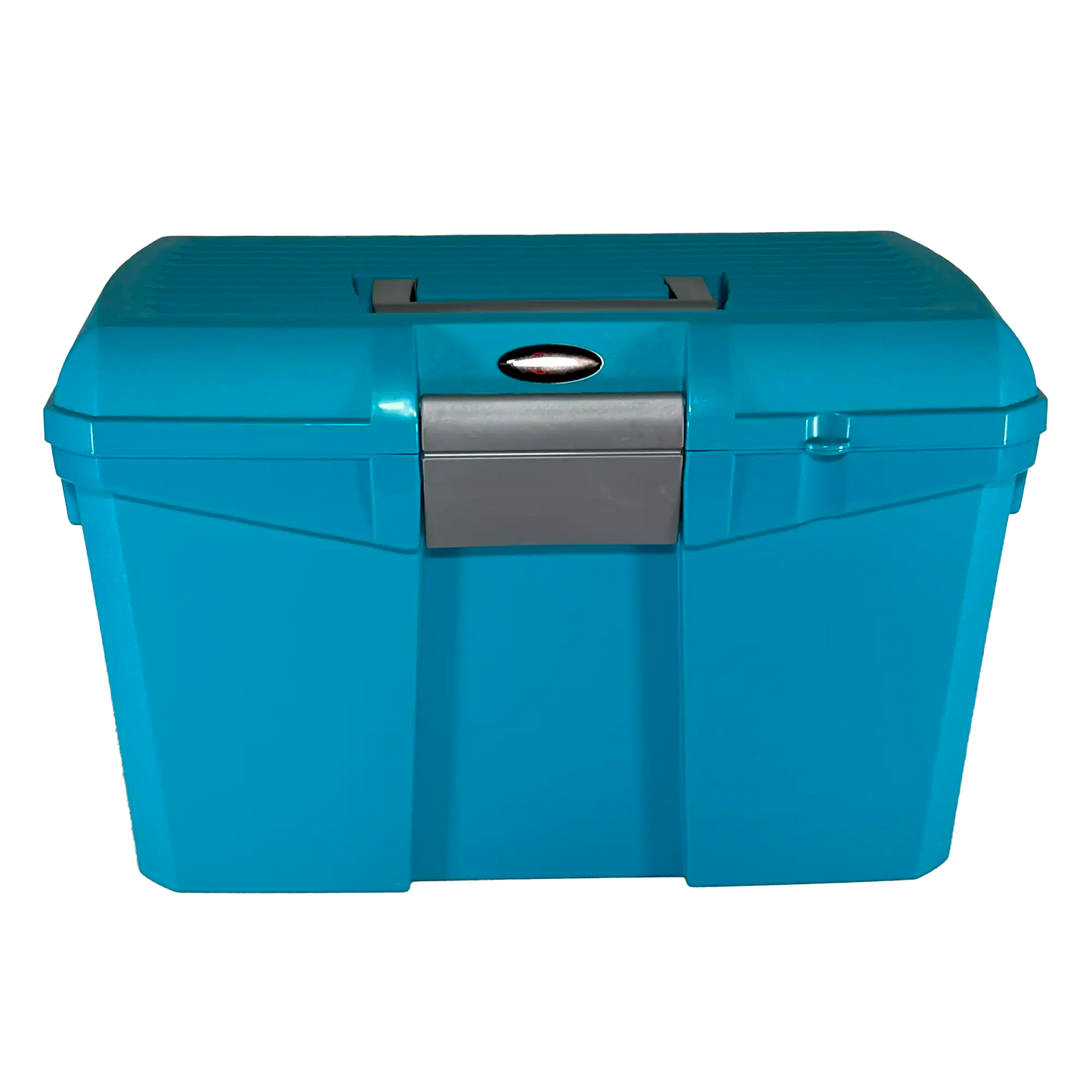

1 x Storage Box - For storing and protecting the equilator and accessories
1 x User Manual - Instructions for setting up, using and maintaining the device.
1 x neck strap
---Inhalation fluid not included---
Mass
Mask opening: 23 x 16 cm
Inner circumference: max. 64 cm
Technical data
Nebulizer
Membrane hole diameter: approx. 5 µm
Quantity: 15 ml
Nebulization performance: approx. 0.5 - 1.8 ml/min (8 - 25 min nebulization time with 10 ml 0.9% NaCl solution)
Connection: USB-C
Voltage: 5V
Working current: 330 mA
Stand-up current: 20 mA
Frequency: 108 kHz
Shelf life: Venebler is designed for approximately 90 applications of 10 ml at NaCl 0.9%
Power supply / power bank
Capacity: 5000 mAh
Interfaces: USB-A, USB-C, QI
Output power: max. 22.5 W
Generally
Please do not expose to temperatures below 4 °C and above 50 °C
material
Polylactide
Polycarbonat
Thermoplastic elastomer
Care
Nebulizer: Rinse 3 times with distilled water and nebulize for 5 seconds. Then dry.
Mask: Remove the valve cap and valve closure element. Then wipe everything with a damp cloth and dry.
Store in a dry place in the box (see operating instructions)
guarantee
12 months, excluding consumables, e.g. nebulizers.
